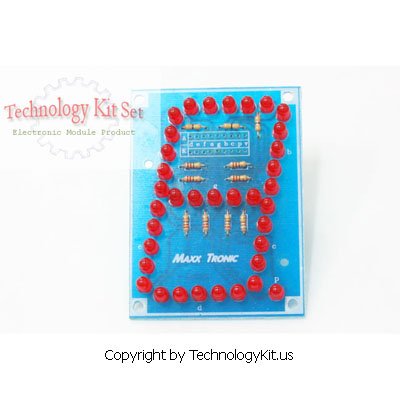

Seven Segment Display Seven Inches Tall LED Light Display Panel Electronic Module

Manufacturer: TechnologyKit.us

Buy New: $22.95

Shipping Weight (lbs): 0.4
Dimensions (in): 5.2 x 1 x 7.5

MPN: MX036
Model: MX036

Availability: Usually ships in 1-2 business days
Shipping: Expedited shipping available
Condition: Brand new in seal package from factory with 14 day right to return for refund or exchange

Amazon Prime Free Trial member benefits.

Unlimited FREE Two-Day Shipping on millions of Amazon.com Items

Overnight Shipping upgrades for only $3.99 per item

Shopping with no minimum order size

Ability to share benefits with up to 4 household members

1 Month Free Trial

Free trialSign-up through October 31,2008 only.

Features:

•	Display dimensions: 100 x 180 mm. or 4 x 7 inch.
•	PCB dimensions: 136 x 192 mm. or 5.4 x 7.7 inch.
•	Power supply: 12 Vdc or 24 Vdc. (select jumper)
•	Consist: 20 LED's per segment and 5 LED's for a decimal point (p).
•	At 12 Vdc. A segment current ~ 60 mA. A decimal point (p) current ~ 15 mA. Total current ~ 435 mA.

Editorial Reviews:

Product Description
Seven inch height, 20 LEDs per segment, and 5 for the decimal point. This is a fully assembled and tested module. Runs on either 12vDC or 24vDC, depending on the state of a jumper. At 12vDC, a segment uses 60mA, the decimal 15mA, for a total current of 435mA.
