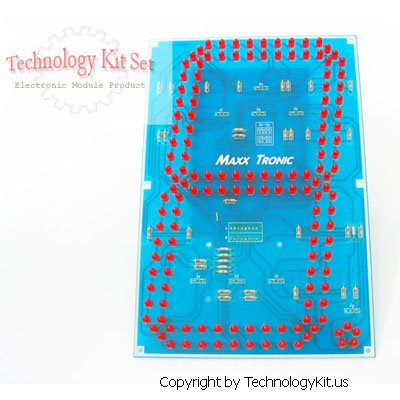

Seven Segment Display Nine Inches Tall LED Light Display Panel Electronic Module |
| Manufacturer: TechnologyKit.us
Buy New: $29.95
Shipping Weight (lbs): 0.5
Dimensions (in): 6.6 x 2 x 9.7
MPN: MX037
Model: MX037
Availability: Usually ships in 1-2 business days
Shipping: Expedited shipping available
Condition: Brand new in seal package from factory with 14 day right to return for refund or exchange
|
 |
|
Amazon Prime Free Trial member benefits.
Unlimited FREE Two-Day Shipping on millions of Amazon.com Items
Overnight Shipping upgrades for only $3.99 per item
Shopping with no minimum order size
Ability to share benefits with up to 4 household members
1 Month Free Trial
Free trialSign-up through October 31,2008 only.
|
|
|
|
|
| Features:
| • | Display dimensions: 147.10 x 229.80 mm. or 5.8 x 9 inch. | | • | PCB dimensions: 161.60 x 240.70 mm. or 6.4 x 9.5 inch. | | • | Power supply: 12 Vdc or 24 Vdc. (select jumper) | | • | Consist: 20 LED's per segment and 5 LED's for a decimal point (p). | | • | At 12 Vdc. A segment current ~ 60 mA. A decimal point (p) current ~ 15 mA. Total current ~ 435 mA. |
|
| Editorial Reviews:
Product Description
9 inches tall, twenty LEDs per segment, five for the decimal. This is a fully tested and assembled module. Can run on either 12vDC or 24vDC, depending on how you set a jumper. At 12vDC, each segment runs on 60mA, the decimal 15mA, for a total current of 435mA. Simply connect the common cathode and the common anode on the copper side of the board to your seven segment display driver, and you are all set!
|
