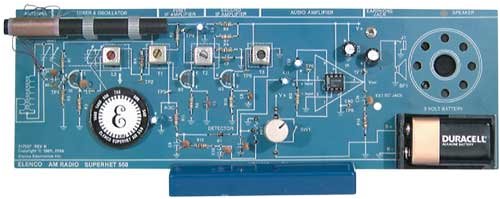

AM Integrated Circuit Radio Kit & Training Course |
| Brand: Am
Buy New: $21.95
Shipping Weight (lbs): 1
MPN: AM550K
Model: AM550K
UPC: 756619001036
EAN: 0756619001036
Availability: Usually ships in 1-2 business days
|
 |
|
Amazon Prime Free Trial member benefits.
Unlimited FREE Two-Day Shipping on millions of Amazon.com Items
Overnight Shipping upgrades for only $3.99 per item
Shopping with no minimum order size
Ability to share benefits with up to 4 household members
1 Month Free Trial
Free trialSign-up through October 31,2008 only.
|
|
|
|
|
| Features:
| • | Learn all about AM radio theory and circuits! | | • | Build an IC based AM radio with great reception! | | • | Step-by-step assembly and test procedures | | • | Great IC starter kit for students young and old | | • | |
|
| Editorial Reviews:
Product Description
AM Radio, Learn How It Works, And Build One Too! This Superhet AM550 AM Radio Kit is a superheterodyne receiver of the standard AM (amplitude modulation) broadcast frequencies. Unlike the typical cheap AM radio kit, the AM550 features an integrated circuit design to bring you into todays technology of radio receivers. The high quality design includes a built-in integrated circuit (IC), 3 transistors, one diode, as well as resistors, capacitors, coils, The unique design of the Superhet 108 includes an integral integrated circuit (IC), 9 transistors, 4 diodes, and other related resistors, capacitors, coils, misc. parts and customer designed hardware. Before you even start building, construction techniques and soldering practices are illustrated and covered in detail. In addition a comprehensive parts list complete with a color code card is provided for rapid identification of all discrete parts.The training course and assembly are broken down into 5 distinctive sections, allowing you to learn, build, and troubleshoot each section before advancing to the next section. Like the AMFM unit above, after each section you will be instructed to make certain tests and measurements to prove that each section is functioning properly. If a test fails to produce the proper results, a troubleshooting guide is provided to help you correct the problem. After all of the stages have been built and tested, a final alignment procedure is provided to peak the performance of the receiver and maximize the AM550s superb reception. Runs on a standard 9VDC battery, not included. From Elenco.;
|
|
|
