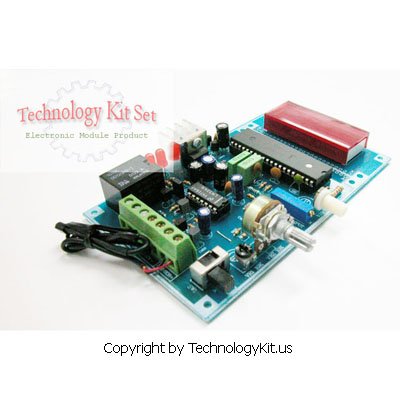

Digital Temperature Control Electronic Module (between 20 and 100 Celsius)

Brand: MaxxTronic

Buy New: $39.95

Shipping Weight (lbs): 0.4
Dimensions (in): 5.4 x 1 x 3.3

MPN: MX052
Model: MX052

Availability: Usually ships in 1-2 business days
Condition: Brand new in seal package from factory with 14 days right to return for refund or exchange

Features:

•	Display : 3.5 digits (0.1 display resolution)
•	LED display, showing the following three items : 1. Current temperature reading; 2. Minimum temperature setting; 3. Maximum temperature setting;
•	Minimum and maximum thermometer.
•	Can be set to the operation of relay.
•	LED indication for power on/off and relay on/off

Similar Items:

•	DC Motor Speed Control Fully Assembled Electronic Module 15 Ampere LX033

Editorial Reviews:

Product Description
Digital Temperature Control Module -20 to 100 Celsius. Power supply : 12 VDC./ max 250 mA. Max. load : 500 Watts. Display : 3.5 digits (0.1) LED Display shows current temp, min temp setting, max temp setting.This will allow you to connect your heater or air conditioner, or fan (up to 500 watts) through the relay. You can then set a low and high temperature value, within the tolerance of -20C to +100C. The display will tell you the current temperature, and when the low temp is hit, the relay comes on (activating your heater) until the current temperature value reaches the high value which acts as a cut off, opening the relay and turning off the heater. Conversely, this can work the opposite way as well, so that you can run an airconditioner or fan. Power supply : 12 VDC./ max 250 mA. Max load for the relay: 500 Watts. Sensor temperature range: -20 to +100 Celsius Display: 3.5 digits. There is also LED indication for power on/off and relay on/off. This is a fully assembled and tested module.
